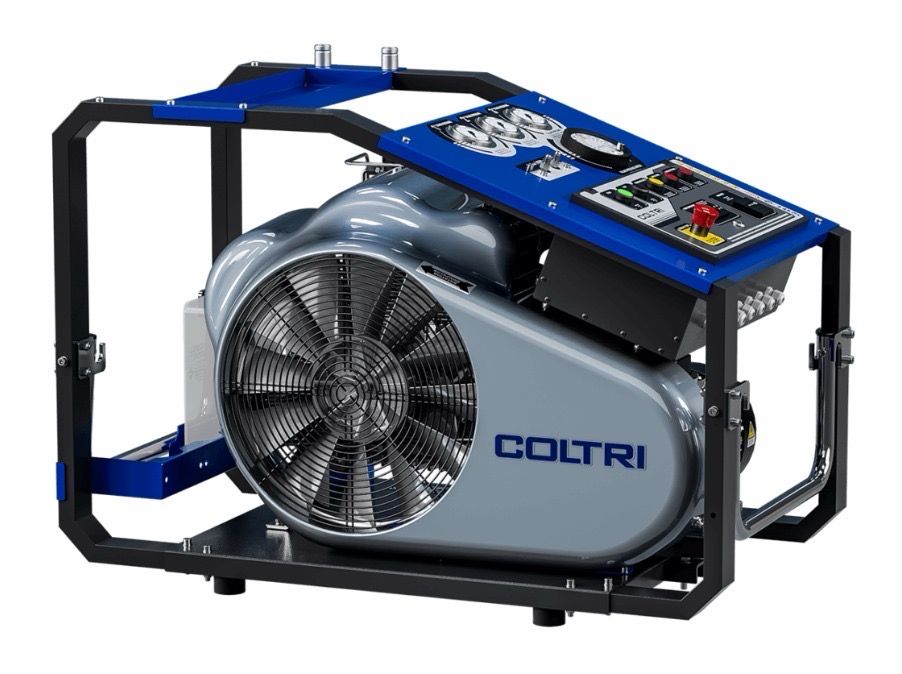

Compressor Ergo TPS MCH16 Coltri

Practical to carry, ERGO stands out for its sturdiness and

Great operational efficiency.

Equipped with a monitoring panel complete with pressure gauges

interstage, hitchhiking with adjustable pressure switch, exhaust

Automatic condensation and direction of rotation control.

3-stage high-pressure pumping unit.

Aluminium monobloc,

Forged steel gooseneck

Splash lubrication

Forged Aluminum Connecting Rods

Main roller bearings

Roller connecting rods bearings

1st and 2nd stage cylinders made of aluminium with nicasil hard coating

2nd and 3rd stage skid guide cylinders made of aluminium with nicasil hardfacing

3rd stage cylinder made of special treated steel.

Stainless steel intake and exhaust valves

Stainless steel interstage cooling pipes

Separator after 2nd and 3rd stage

Safety valves after each stage

Maxifilter filter system

Oil level sensor

Electrical panel

ON/OFF switch with motor protection switch.

Electromechanical pressure switch that stops the compressor at the final pressure.

Drainage of all separators between the individual stages and also of the final separator during compressor operation

Timer for automatic condensate drain.

Built-in no-load start (automatic drain each time the unit is switched off).

5 litre condensate collection tank, with silencer; Capacity of approx. 3 litres, for environmentally friendly condensate disposal.

Interstage pressure gauges display the operating pressure for individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and quickly identify potential sources of failure.

Standard equipment

2 cylinder connections to choose from DIN 232, DIN 300 or INT/YOKE 232 bar

2 x 1.2 m long hoses

Pressure Maintenance Valve

Interstage control pressure gauges

Maxifilter filter system

Cab interior temperature with automatic shut-off

Automatic control of the direction of rotation

Pressure switch with automatic shut-off

Oil level control with automatic shut-off

Automatic condensate drain with conveyance system in the tank

Frame color Blue RAL 5002
