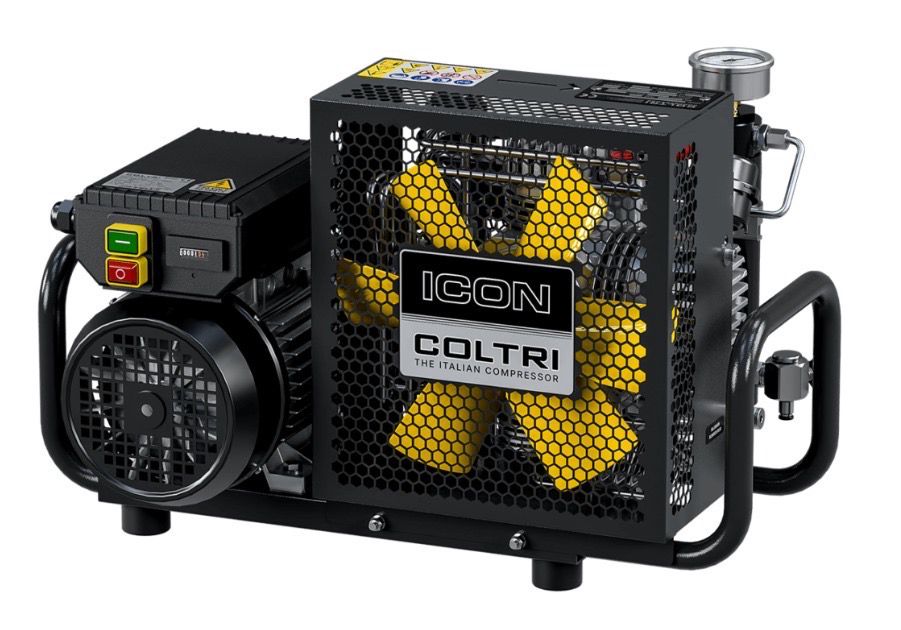

Compressor Icon MCH6 electric

Icon LSE Series Models Meet Air Needs

breathable high pressure for the diving world,

firefighting and paintball.

Add what you want: the valve

pressure maintenance, the

automatic condensate drain,

hitchhiking.

Do you want the stainless steel frame?

Icon is also available in this

version.

Technical Data

Type of gas

Breathing air EN 12021 – Nitrox 40% max O2 – Helium – Nitrogen

Suction pressure

Atmospheric max 300 millibars

Nominal Pressure

230 bar / 330 bar

Working Pressure

230 bar / 330 bar

Maximum operating pressure

330 bar

Permissible temperature range

-10° C ÷ +40° C

Permissible altitude range

0 ÷ 2,000 m ASL

Maximum permissible inclination

6°

Design

BASIC

Operating Voltage, Standard

400 V, 50 Hz

Other Operating Voltage

On a three-phase electric motor at 60 hz, the power (kW/Hp) increases by 20%.

230 V, 50 Hz / 230 V, 60 Hz / 440 V, 60 Hz

Oil

Coltri ST 755 synthetic oil

Oil Change Interval

1 year / 50 h

Loom

Steel – black RAL 9005 – Powder coating – Scratch-resistant

Noise

LpA LpA 68 dB dB
