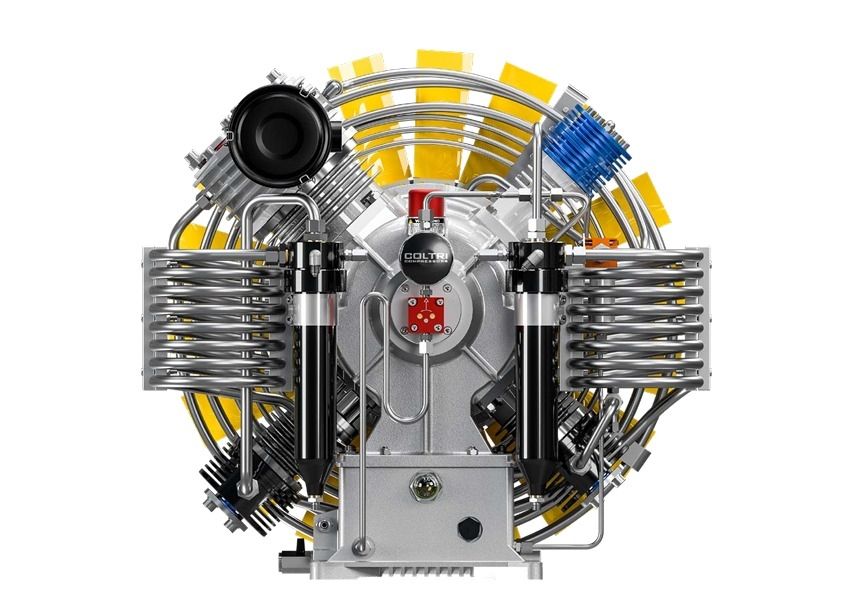

MCH22 Pump Unit 450LT- 15.9 CFM
$0.00
1
Product Details
Charging rate
Measured during 10 liters cylinder filling from 0-200 bar tolerance +/- 5% at + 20 ° C ambient temperature.
450 l/min – 27.0 m³/h – 15.9 cfm
Nominal pressure 250 bar / 330 bar / 360 bar
Max working pressure 420 bar
Speed 1,050 rpm
Number of stages 4
Number of cylinders 4
Cylinder bore – 1st stage 130 mm (5.11 in)
Cylinder bore – 2nd stage 60 mm (2.36 in)
Cylinder bore – 3rd stage 32 mm (5.11 in)
Cylinder bore – 4th stage 15 mm (1.25 in)
Stroke 50 mm (1.96 in)
Direction of rotation Left – counterclockwise (from flywheel side)
Drive type V-belt (A type)
Intermediate pressure – 1st stage ~3.2 bar (46.4 psig)
Intermediate pressure – 2nd stage ~16 bar (232 psig)
Oil amount 4 liters (135.2 fl oz)
Intake pressure 1.3 bar / 300 mbar (18.8 psig)
