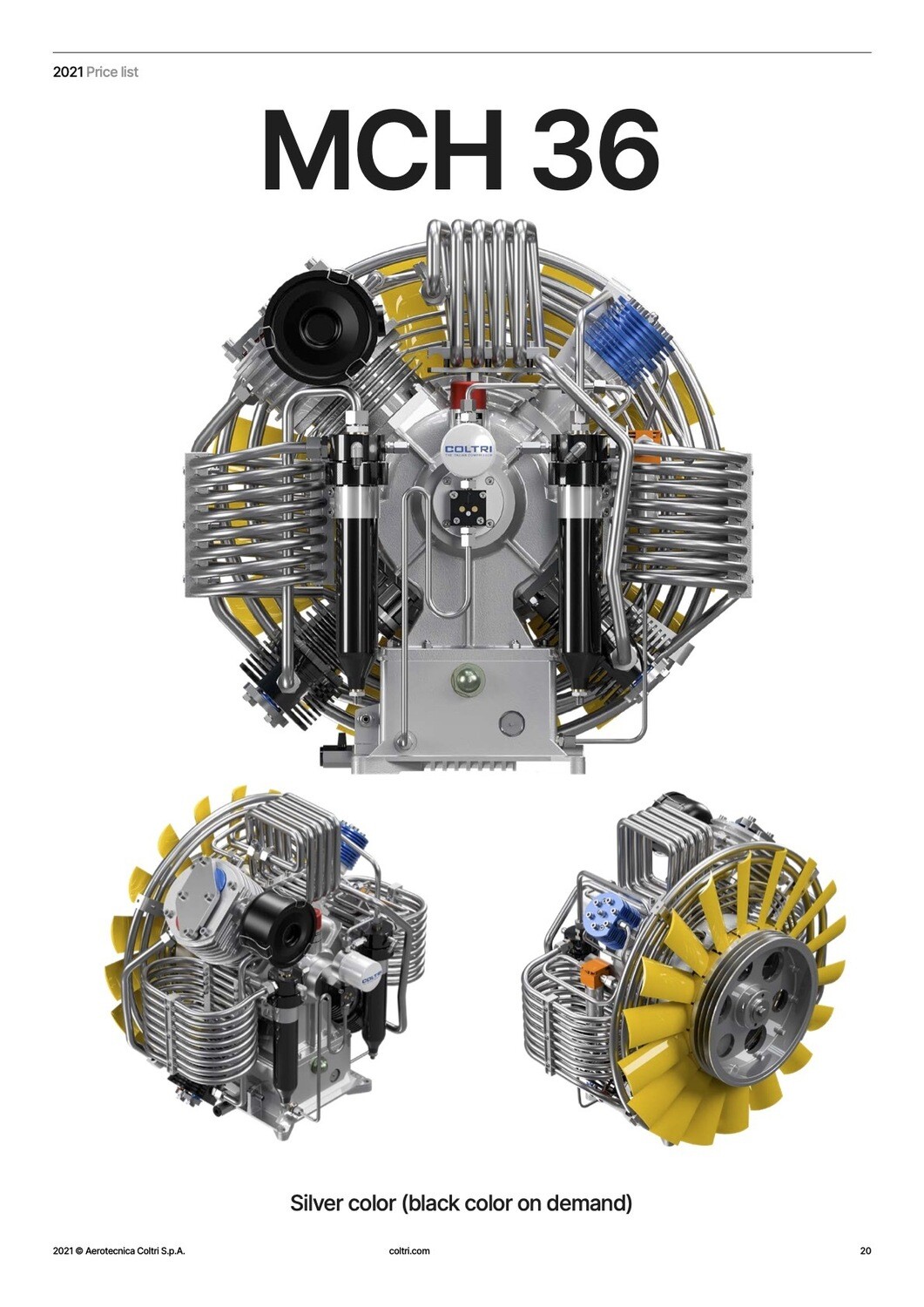

MCH36 Pump Unit 650 LT-23 CFM
$0.00
Coltri
1
Product Details
Charging rate
Measured during 10 liters cylinder filling from 0-200 bar
tolerance +/- 5% at + 20 ° C ambient temperature.
650 l/min
39 m3/h
23 cfm
750 l/min
45 m3/h
26,5 cfm
Speed (RPM) 1.250 1.420
Number of stages 4
Number of cylinders 4
Cylinder bore 1st stage 130 mm
Cylinder bore 2nd stage 60 mm
Cylinder bore 3rd stage 32 mm
Cylinder bore 4th stage 15 mm
Stroke 50 mm
Direction of rotation (from flywheel side) In senso antiorario (sinistra)
Drive type Cinghia trapezoidale - tipo A
Intermediate pressure 1st stage ~ 3,2 bar
Relief valve after 1st stage 5 bar
Intermediate pressure 2nd stage ~ 16 bar
Relief valve after 2nd stage 22 bar
Intermediate pressure 3rd stage ~ 50 bar
Relief valve after 3rd stage 100 bar
Oil sump capacity 4 litri
Max intake pressure 1,3 bara
– 300 millibar
